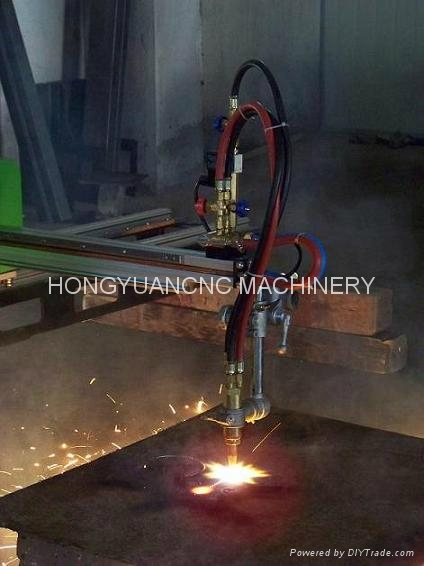

Portable flame cutting machine is small gas cutting machine, light weight and easy to operation, used in automobiles, shipbuilding, petrochemical, boiler and pressure vessel, engineering machinery, light industry and machinery industry. Applicable to the carbon steel (flame cutting), and so the sheet metal cutting and cutting. Portable flame cutting machine is suitable for different lines of the face-piece and mass production.
|
Main technical parameter of Portable flame cutting machine
|
|
Ø Machine size
|
1700×2300mm
|
|
Ø Effective cutting width
|
1200mm
|
|
Ø Effective cutting length
|
1800mm
|
|
Ø Start step moter and servo
|
2
|
|
Ø Guiding mode(precision liner rail and slide block)
|
3
|
|
Ø Drive mode(precision rack and pinion)
|
1
|
|
Ø Flame torch
|
1
|
|
Ø CNC system(Beijing Start)
|
1
|
|
Ø Lognitudinal machine framework
|
1
|
|
Ø Cross arm(aluminium profile)
|
1
|
|
Ø Cutting speed
|
50-700mm/min
|
|
Ø Cutting thickness
|
5-100mm
|
|
Ø Rrepeat accuracy
|
±0.2mm/10m
|
|
Ø Ambient temperature
|
-5～45℃
|
|
Ø Relative humidity
|
＜95% no condensing
|
|
Ø Environment
|
Ventilation, no big impact
|
|
Ø Powersupply, voltage
|
220V±10%, 50 HZ
|
|
Ø Machine weight
|
55kg
|
